Graphite furnaces

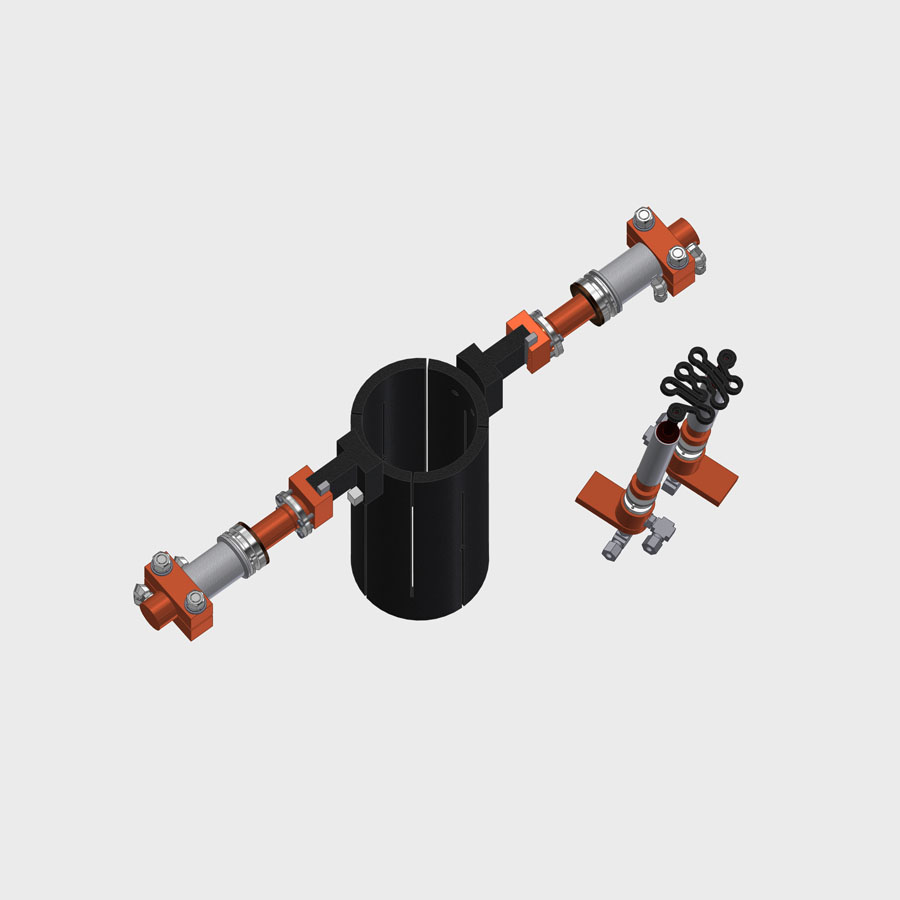

The term graphite furnaces covers all furnaces with one common feature: at least the heating conductor and usually also the insulation are made of graphite.
Graphite furnace – up to 3000 °C
The highest temperatures are achieved with this material, and the heated room can take a wide variety of forms. These furnaces are often used for heat treatments in inert atmospheres.
Short description:
- Temperatures up to 3000 °C
- Atmospheres: inert
- Working chamber diameter: 40 to 150 mm (larger diameters are possible)
- Heated length: 200 to 3000 mm
- Achieved pressure: 100 bar (the furnace housing is decisive)
- Power range: 10 to 100 kW
- Temperature measurement with thermocouple or pyrometer
Heating system:
- Single-zone
- Multi-zone
Charging:
- Top loader
- Bottom loading elevator furnaces
- Flap
Equipment features:
- Wide range of control units with and without PC interfaces
- Software for control unit
- Crucible
- Movable sample thermocouples
- Sample tables
- Additional working tubes
Applications:
- Melting/alloys
- Test facilities
- Pressure sintering
- Foaming
- Investigations of reaction kinetics at high temperatures and pressures
- Heating of solid electrolytes
